Numbering Machine Parts List

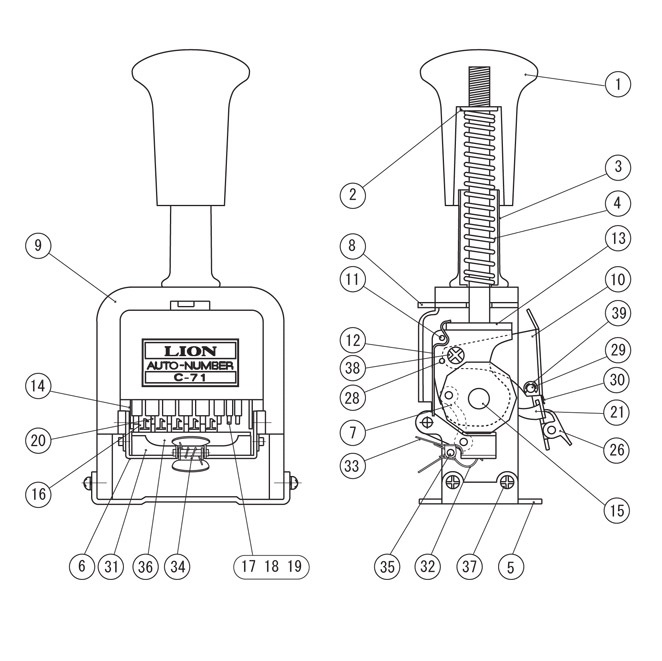

Parts List
1 - Handle ( Knob )
2 - Clip of Main spring
3 - Sleeve
4 - Main spring
5 - Base plate
6 - Pad holder
7 - Pad lever
8 - Locking lever
9 - Frame
10 - Front cover
11 - Cam shaft
12 - Cam spring
13 - Plunger assembly
14 - Swing
15 - Main wheel shaft
16 - Wheel ( 1st - 10th )
17 - Index gear ( Dup 1. )
18 - Index gear ( Trip 1. )
19 - Index gear ( Quadr. )
20 - Gear pole ( set )
2 - Clip of Main spring
3 - Sleeve
4 - Main spring
5 - Base plate
6 - Pad holder
7 - Pad lever
8 - Locking lever
9 - Frame
10 - Front cover
11 - Cam shaft
12 - Cam spring
13 - Plunger assembly
14 - Swing
15 - Main wheel shaft
16 - Wheel ( 1st - 10th )
17 - Index gear ( Dup 1. )
18 - Index gear ( Trip 1. )
19 - Index gear ( Quadr. )
20 - Gear pole ( set )
21 - Movement indicator ( set )
22 - Movement indicator Plate
23 - Knock
24 - Slider
25 - Shaft
26 - Index
27 - Index spring
28 - Gear pole shaft
29 - Selector shaft
30 - Selector spring
31 - Pad holder clip ( set )
32 - Clip
33 - Case
34 - Spring
35 - Shaft
36 - Pad ( doz )
37 - Base plate screw
38 - Front cover screw
39 - E - ring
22 - Movement indicator Plate
23 - Knock
24 - Slider
25 - Shaft
26 - Index
27 - Index spring
28 - Gear pole shaft
29 - Selector shaft
30 - Selector spring
31 - Pad holder clip ( set )
32 - Clip
33 - Case
34 - Spring
35 - Shaft
36 - Pad ( doz )
37 - Base plate screw
38 - Front cover screw
39 - E - ring
